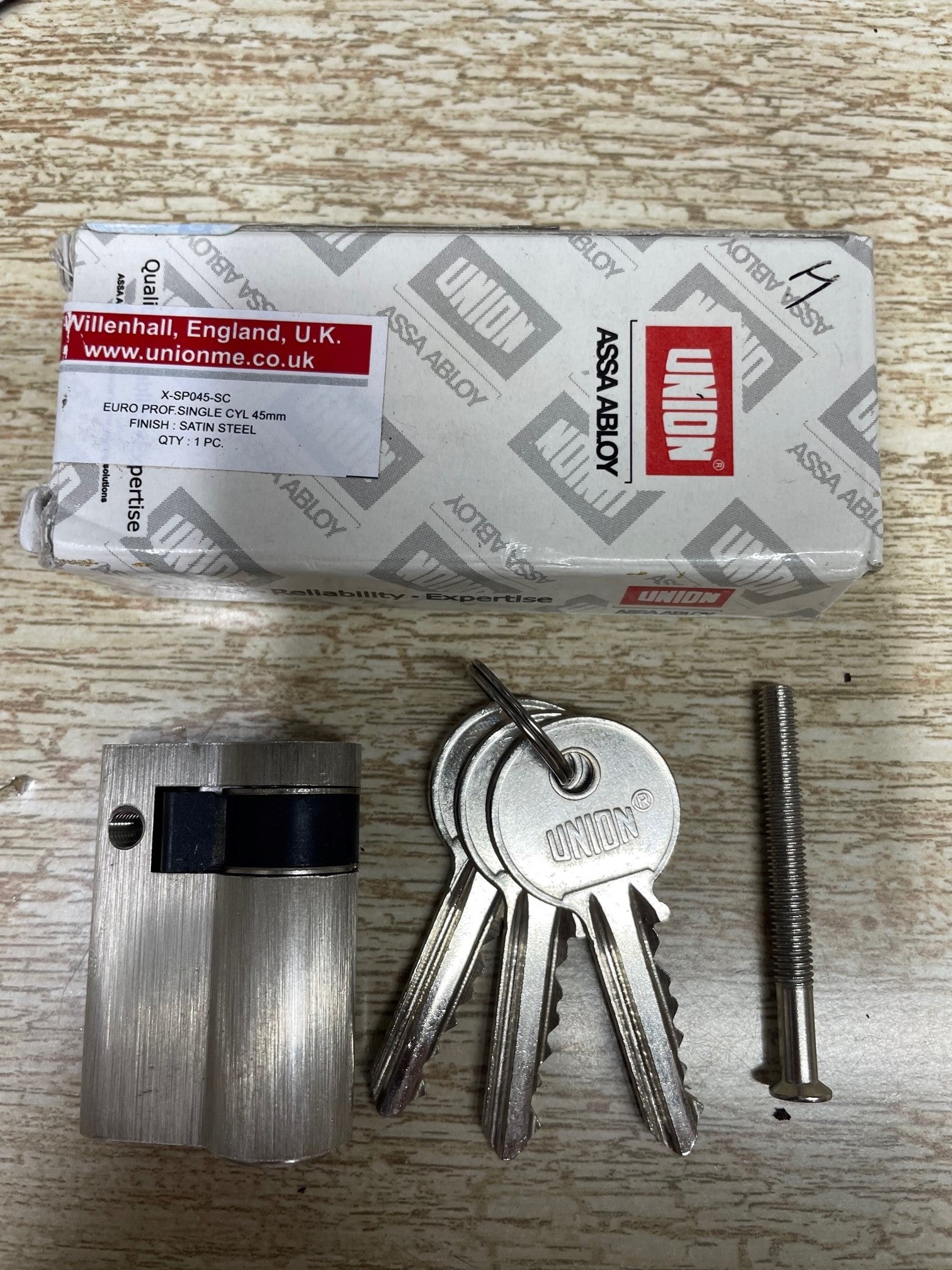

High Quality

• Size 45mm
• Key operated to lock or unlock
• Patented high-security cylinder system
• DTEC key with patented 'side bar' design prevents illicit key copying
• Anti-corrosive nickel internal components used as standard
• Over 240,000 effective differs
• Supplied master keyed
• Can be keyed with other DTEC cylinder products such as padlocks
• Anti-drill and pick feature
• Available sub-assembled for in-house pinning
• For master key information please check with the UNION area manager responsible for your area
• Please check cylinder compatibility when specifying non UNION lock cases
• Keys: Supplied separately - please specify quantity required on order
• Please refer to Cylinder Introduction pages for information on 'X' and 'Y' dimension
• Tested to BS EN 1303 : 2005
• EN 1634-1 : 2000 assessed for use on 60 minutes timber fire doors
• Grade 2 achieved for resistance to drilling, chiselling, twisting, torque on plug
• Single keyed cylinder
• For use with euro profile lock cases

Security Level :

IMPA Code :

HS Code :

Packing Details :

Hand Side :

Recommended use :

Suitable for :
