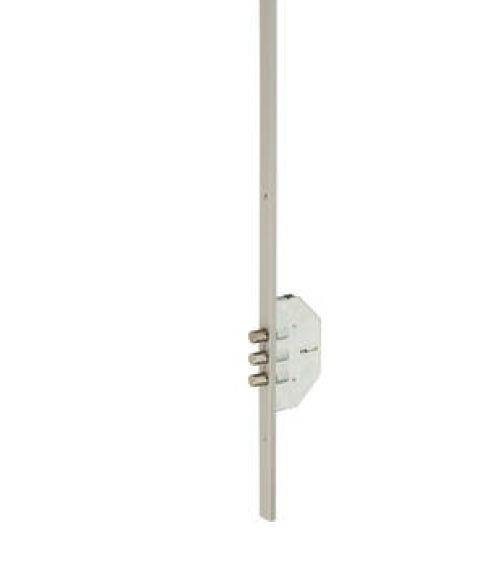

MCM Multi Point 701-3-N50 Made in Spain
MCM Multi Point 701-3-N50 Made in Spain
Couldn't load pickup availability
Get Aed 20 off when you spend Aed 1,000 or more! Learn more
Specifications
Specifications
High Quality

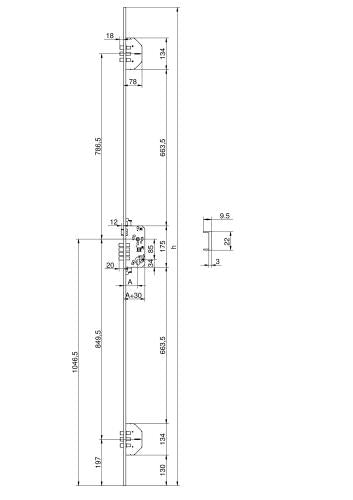

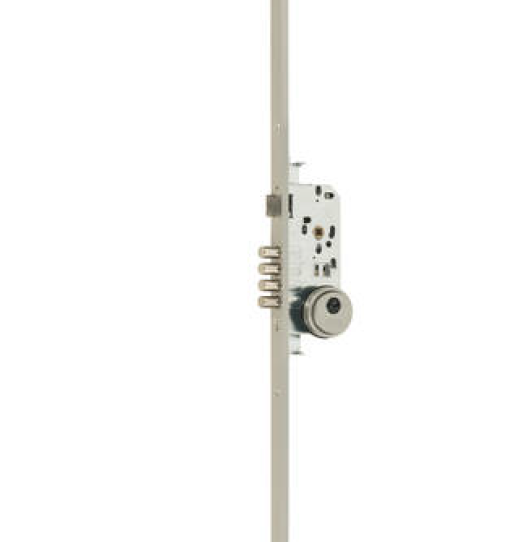

Mortise lock for wooden locks MCM 701-3 with 3 locking points and U forend 22x9,5mm. Central lock operated by europrofile cylinder, with 4 round bolts and backset of 50mm or 60mm. The bolts are projected 21mm with 2 key turns. Interaxis 85mm.
| Door Type | Wooden Doors |
| Lock Application Type | Mortise Lock |
| Operation Type | Handle Operated, Cylinder Operated |
| Locking Points | 3 points |
| Locking Type | European Profile Cylinder |
| Closing Mechanism | Step Mechanical |
| Locking Elements | Round Bolt, Latch |
| Multi Point Type | Long Forend |
| Deadbolt Operation | Standard |
| Reversible Latch | Yes |
| Compatible with Electric Strike | Yes |
Configuration
| Number of Keys | 5 |
| Key Material | Brass Nickel |
| Interaxis (mm) | 85 |
| Backset Inc Forend (mm) | 50, 60 |
| Backset Without Forend (mm) | 47, 57 |
| Case Height (mm) | 175 |
| Case Depth (mm) | |
| Case Thickness (mm) | 19 |
| Case Material | Steel |
| Case Finish | Galvanised |
| Additional Locking Point Material | Nickel Zamak |
| Deadbolt Shape | Round |
| Deadbolt Material | Nickel Zamak |
| Deadbolt Dimension | Ø14 |
| Deadbolt Throw (mm) | 20 |
| Latch Dimension | 26x14 |
| Latch Throw (mm) | 12 |
| Latch Material | Nickel Zamak |
| Follower Type | Standard Follower |
| Follower (mm) | 8 |
| Material of the Follower | Zamak |
| Forend Shape | U-Shape |
| Forend Length (mm) | 2030, 2110, 2300 |
| Forend Thickness (mm) | 3 |
| Forend Material | Aluminium |
| Forend Finish | Painted Silver, Painted Gold |
| Security Escutcheon Included | Yes |
| Strike Plate Included | Yes |
| Escutcheon Included | Yes |
Product Details
Product Details
Security Level :
IMPA Code :
HSN Code :
Packing Details : 6 Sets
Hand Side :
Recommended use :
Suitable for :
