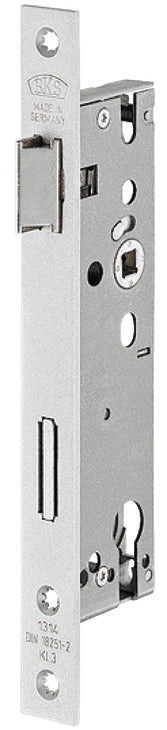

High Quality

>Area of application: Residential areas
 >For door type: Hinged doors,Exterior doors,Interior door
 >For door material: Tube profile
 >Prepared for: Profile cylinder
 >Functionality: With key action
 >Material: Forend: Stainless steel or steel,latchbolt and lever follower: Zinc alloy, deadbolt: Zinc alloy with sawing protection, lock case: Steel
 >Forend length: 245 mm
 >Deadbolt version: Deadbolt with sawing protection
 >Latch bolt version: Standard latch
 Note
 Forend width 24 mm for rebated and flush doors

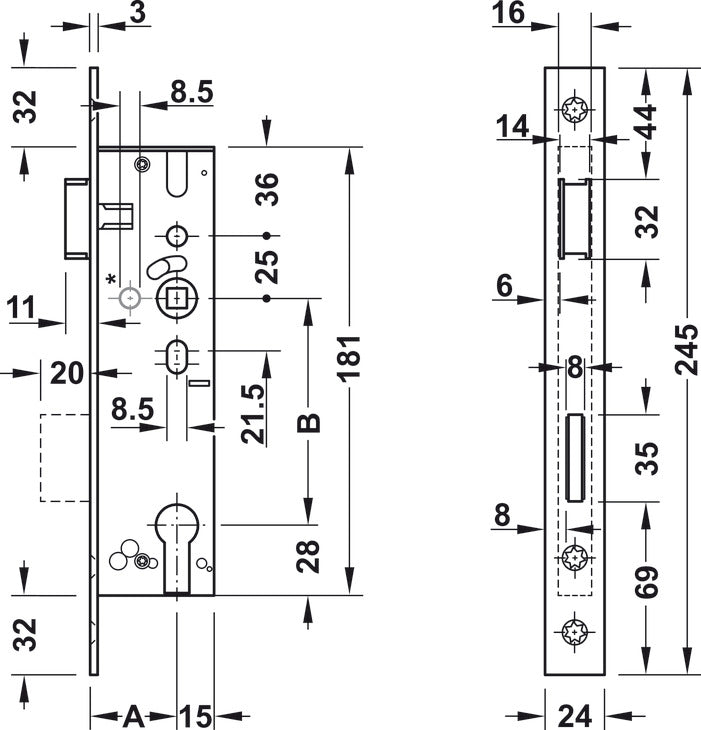

 Technical data
 Lock type PC
 Distance 92 mm
 Deadbolt throw 1 turn
 Deadbolt throw dim. 20 mm
 Lever follower 8 mm
 Backset mm
 Forend width mm
 Mounting Satin stainless steel PC
 25 24 For DIN left and DIN right hand use
 911.75.980 30 24 For DIN left and DIN right hand use
 911.75.981 35 24 For DIN left and
DIN right hand use 911.75.982 40 24 For DIN left and
DIN right hand use 911.75.983 45 24 For DIN left and DIN right hand use 911.75.984
