Product Description
Product Description

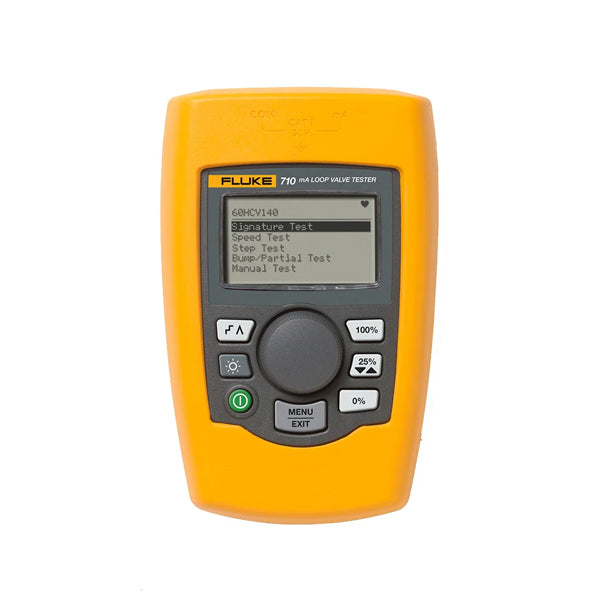

The Fluke 710 is a loop calibrator designed to perform quick and easy tests on HART smart control valves. It features built-in test procedures and an intuitive interface for comprehensive valve testing. The unit allows users to source a 4-20 mA signal while interpreting the valve’s HART feedback signal.
Features
- Built-in test procedures for HART smart control valves
- HART communication function for signal sourcing and interpretation
- Quick-check results indicating valve health (Good, Marginal, Bad)
- Includes ValveTrack™ software for data analysis
Technical details
| Accuracy | 0.01% mA measurement accuracy |
|---|---|
| Resolution (mA) | 1 μA on mA ranges |
| Resolution (Volts) | 1 mV on voltages ranges |
| Loop Power | 24 VDC with mA measure mode (-25% to 125%) |
| HART Resistor | Built in selectable 250 Ω resistor |
| Connection | Simple two wire connection for all measurements |
| Datalogging Capacity | 9800 records or 99 individual sessions |
| Included Accessories | Stackable test lead set, Extended tooth alligator clip set, TP220 test probes, AC280 SureGrip hook clips, Lemo to USB upload/download cable, Softcase, Six (6) AAA batteries (installed), 709/709H/710 Product manual CD-ROM, 709/709H/710 Quick reference guide, 709/709H/710 Safety information |
Prices exclude 5% VAT.
