Product Description

This is a versatile and rugged True-RMS clamp meter designed for high current measurements up to 2000A AC/DC. Its extra-wide jaw allows it to easily clamp around large conductors in high-current applications. The advanced features enable multiple tests with one tool, ideal for utilities and electrical contractors.

Features

Handles wide range of high-current applications (2000 A AC + DC True RMS)
Large 58 mm jaw capacity for large or multiple conductors
CAT IV 600 V, CAT III 1000 V safety ratings
In-rush current measurement captures power-on surge current
Measures high voltage (1000 V AC + DC True RMS)
Includes resistance to 400 kΩ with continuity beeper

Technical details

AC current (10 Hz to 100 Hz)	40 A / 400 A / 1400 A AC rms ranges; resolution 10 mA / 100 mA / 1 A; accuracy 1.5% rdg + 15 digits (40 A), 1.5% rdg + 5 digits (400 A, 1400 A)
AC current (100.1 Hz to 1 kHz)	accuracy 3.5% rdg + 15 digits (40 A), 3.5% rdg + 5 digits (400 A, 1400 A)
DC current	40 A / 400 A / 2000 A ranges; resolution 0.01 A / 0.1 A / 1 A; accuracy 1.5% rdg + 15 digits (40 A), 1.5% rdg + 5 digits (400 A, 2000 A)
Inrush trigger level	0.50 A / 5.0 A / 5 A (40 A / 400 A / 1400 A range)
AC voltage (10 Hz to 100 Hz)	4 V / 40 V / 400 V / 600 V AC rms ranges; resolution 1 mV / 10 mV / 100 mV / 1 V; accuracy 1% rdg + 10 digits (4 V), 1% rdg + 5 digits (40 V to 600 V)
AC voltage (100.1 Hz to 1 kHz)	accuracy 3% rdg + 10 digits (4 V), 3% rdg + 5 digits (40 V to 600 V)
DC voltage	4 V / 40 V / 400 V / 1000 V ranges; resolution 0.001 V / 0.01 V / 0.1 V / 1 V; accuracy 1% rdg + 10 digits (4 V), 1% rdg + 5 digits (40 V to 1000 V)
Resistance	400 Ω / 4 kΩ / 40 kΩ / 400 kΩ ranges; resolution 0.1 Ω / 1 Ω / 10 Ω / 100 Ω; accuracy 1.5% + 5 digits
Continuity beeper	On at 30 Ω or less, off at 100 Ω or more
Frequency	5.0 Hz to 1 kHz; accuracy 0.2% + 2 counts (5 Hz to 100 Hz), 0.5% + 5 counts (100.1 Hz to 1 kHz)
Jaw size	58 mm (2.28 in)
Safety rating	IEC 61010-2-032: CAT IV 600 V, CAT III 1000 V
Batteries	Six 1.5 V AA (NEDA 15 A or IEC LR6), about 100 hours
Operating temperature	0 °C to +50 °C
IP rating	IP42 (indoor use only)
Dimensions (L x W x D)	300 x 98 x 52 mm
Weight	814 grams
Included Accessories	355 2000 A Clamp Meter, (1 pair) TL224 1.5 m silicone rubber test leads, (1 pair) TP2 test probes, (1 pair) AC285 alliga

Prices exclude 5% VAT.

Specifications

AC current (10 Hz to 100 Hz): 40 A / 400 A / 1400 A AC rms ranges; resolution 10 mA / 100 mA / 1 A; accuracy 1.5% rdg + 15 digits (40 A), 1.5% rdg + 5 digits (400 A, 1400 A)
AC current (100.1 Hz to 1 kHz): accuracy 3.5% rdg + 15 digits (40 A), 3.5% rdg + 5 digits (400 A, 1400 A)
DC current: 40 A / 400 A / 2000 A ranges; resolution 0.01 A / 0.1 A / 1 A; accuracy 1.5% rdg + 15 digits (40 A), 1.5% rdg + 5 digits (400 A, 2000 A)
Inrush trigger level: 0.50 A / 5.0 A / 5 A (40 A / 400 A / 1400 A range)
AC voltage (10 Hz to 100 Hz): 4 V / 40 V / 400 V / 600 V AC rms ranges; resolution 1 mV / 10 mV / 100 mV / 1 V; accuracy 1% rdg + 10 digits (4 V), 1% rdg + 5 digits (40 V to 600 V)
AC voltage (100.1 Hz to 1 kHz): accuracy 3% rdg + 10 digits (4 V), 3% rdg + 5 digits (40 V to 600 V)
DC voltage: 4 V / 40 V / 400 V / 1000 V ranges; resolution 0.001 V / 0.01 V / 0.1 V / 1 V; accuracy 1% rdg + 10 digits (4 V), 1% rdg + 5 digits (40 V to 1000 V)
Resistance: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ ranges; resolution 0.1 Ω / 1 Ω / 10 Ω / 100 Ω; accuracy 1.5% + 5 digits
Continuity beeper: On at 30 Ω or less, off at 100 Ω or more
Frequency: 5.0 Hz to 1 kHz; accuracy 0.2% + 2 counts (5 Hz to 100 Hz), 0.5% + 5 counts (100.1 Hz to 1 kHz)
Jaw size: 58 mm (2.28 in)
Safety rating: IEC 61010-2-032: CAT IV 600 V, CAT III 1000 V
Batteries: Six 1.5 V AA (NEDA 15 A or IEC LR6), about 100 hours
Operating temperature: 0 °C to +50 °C
IP rating: IP42 (indoor use only)
Dimensions (L x W x D): 300 x 98 x 52 mm
Weight: 814 grams
Included Accessories: 355 2000 A Clamp Meter, (1 pair) TL224 1.5 m silicone rubber test leads, (1 pair) TP2 test probes, (1 pair) AC285 alliga

Benefits

Handles wide range of high-current applications (2000 A AC + DC True RMS)
Large 58 mm jaw capacity for large or multiple conductors
CAT IV 600 V, CAT III 1000 V safety ratings
In-rush current measurement captures power-on surge current
Measures high voltage (1000 V AC + DC True RMS)
Includes resistance to 400 kΩ with continuity beeper

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Fluke

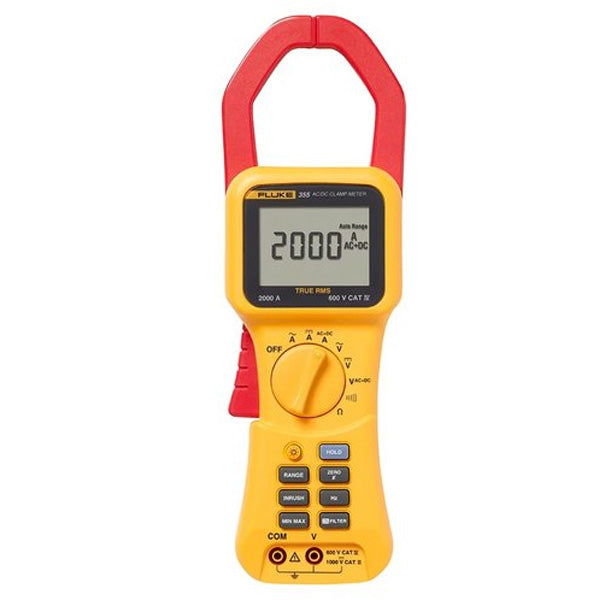

Fluke 355 AC/DC True RMS Clamp Meter -FLUKE
