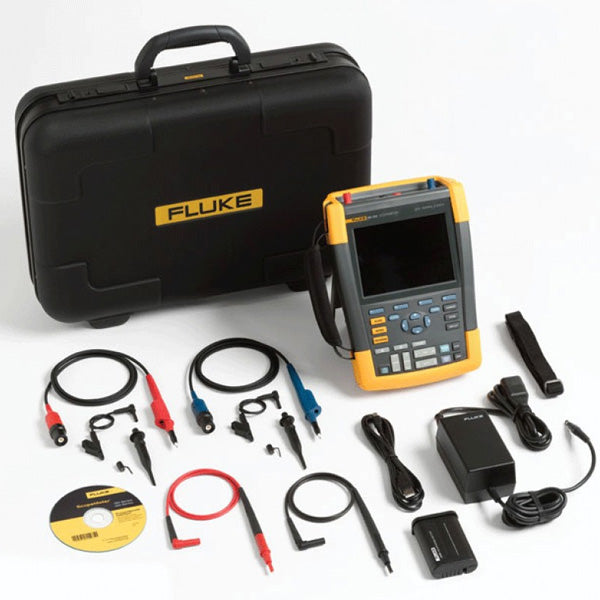

FLUKE-190-104/EU/S ScopeMeter 4 Channel 100 MHZ Color EU SCC -FLUKE
FLUKE-190-104/EU/S ScopeMeter 4 Channel 100 MHZ Color EU SCC -FLUKE
Out of stock
Domestic Standard: 1–2 business days | International Standard: 7–10 business days
Couldn't load pickup availability
Get Aed 20 off when you spend Aed 1,000 or more! Learn more
Product Description
Product Description
This is a rugged, handheld oscilloscope designed for field service and industrial maintenance. It combines a 4-channel 100 MHz scope with a true RMS digital multimeter to troubleshoot complex electrical problems on the go. Its color display and Connect-and-View setup allow for clear waveform viewing without the bulk of a bench instrument.
Features
- CAT III 1000 V / CAT IV 600 V safety rated
- 100 MHz bandwidth with 4 input channels
- 1.25 GS/s real-time sample rate
- Deep memory up to 10,000 samples per channel
- IP-51 rated for dust and drip proofing
- Includes a dedicated digital multimeter
Technical details
| Bandwidth | 100 MHz |
|---|---|
| Number of Channels | 4 |
| Sample Rate | 1.25 GS/s |
| Safety Rating | CAT III 1000 V / CAT IV 600 V |
| ScopeRecord Mode Max Length | 30,000 pts |
| Scope Mode Max Length | 10,000 pts per input |
| Glitch Capture | 8 ns |
| Automatic Measurements | 30 |
| Input Sensitivity | 2 mV-100 V/div |
