FLUKE-1775,POWER QUALITY ANALYZER -FLUKE
FLUKE-1775,POWER QUALITY ANALYZER -FLUKE
Hurry up, only 1 item left in stock.
Domestic Standard: 1–2 business days | International Standard: 7–10 business days
Couldn't load pickup availability
Get Aed 20 off when you spend Aed 1,000 or more! Learn more
Product Description
Product Description

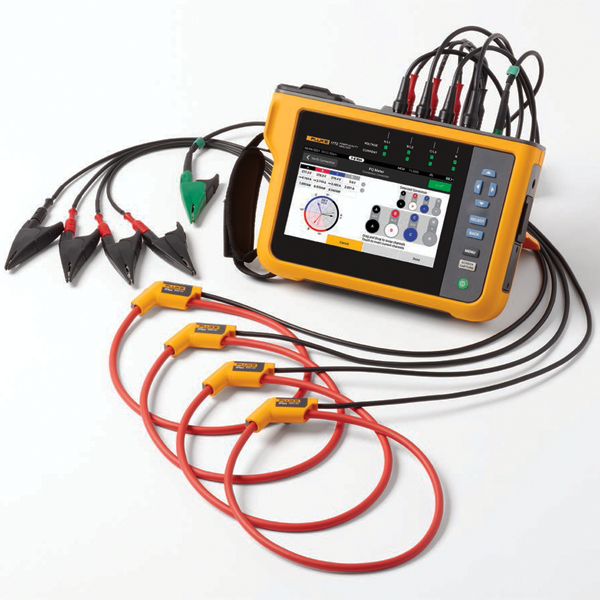

This is a three-phase power quality analyzer designed to simplify the complexities of power quality logging, troubleshooting, and analysis. It automatically measures various power and power quality parameters for comprehensive electrical system characterization. The device features an intuitive user interface and advanced transient capture technology.
Features
- Automatically measure power and power quality parameters
- At-a-glance power quality health for faster troubleshooting
- Capture high-speed transients up to 8 kV
- Power directly from measurement circuit without a line cord
Technical details
| Number of inputs | 4 inputs, 3 phases and neutral referenced to PE (5 connectors) |
|---|---|
| Measurement category | 1000 V CAT III / 600 V CAT IV |
| Maximum input voltage | 1000 V rms / 1000 V dc (1700 Vpk) |
| Nominal voltage range | Wye and single phase: variable (50 V – 1000 V), Delta: Variable (100 V – 1000 V) |
| IEC Compliance | IEC 61000-4-30 Class A compliance for the nominal voltages (Vdin) 100 V – 690 V |
| Input impedance | 10 MΩ between P-P and P-N, 5 MΩ between P-PE and N-PE |
| Bandwidth | DC to 30 kHz for PQ measurem |
Prices exclude 5% VAT.
