BFT ATHOS AC A25 Swing Gate Motor 2.5m 700 kg in Dubai UAE.
BFT THOS AC KIT A25.
Product code R935339 00003.
Complete kit 230 V for swing gates up to 700 kg in weight and 2.5 m in length.
Main features:
Compact design: Athos is designed to space saving and allows the maximum installation flexibility to be installed even in a niche.
Ease of installation: front & rear brackets are aligned, so that the installation is easy & quick.
Maximum comfort: the motor can open in just 14 sec at 90° (mod. A25) or 16 sec. (mod A40).
Strength & robustness: thanks to its sturdy structure and to its high-end materials such as die-cast aluminium shells and bronze crown transmission,
Athos guarantees the maximum strength, reliability and longer life span.

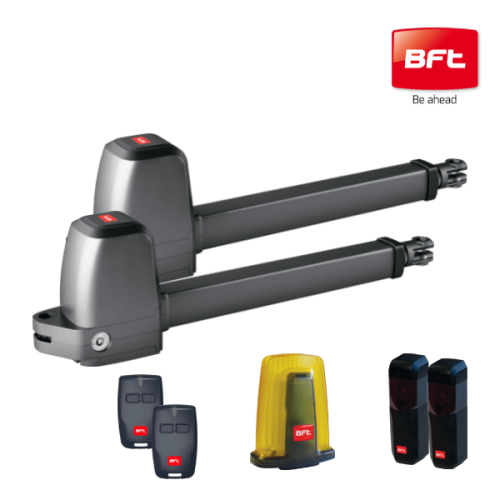

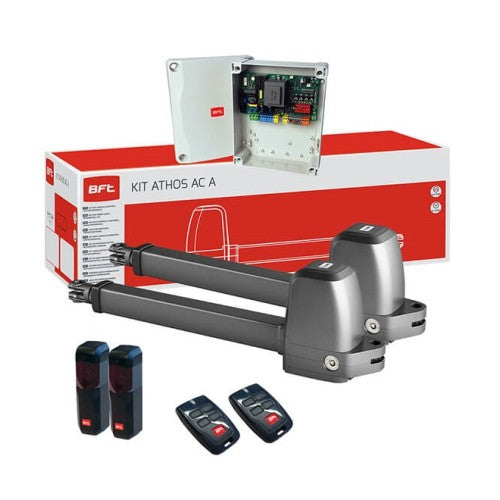

BFT ATHOS AC A25 Kit Includes:
2 x ATHOS AC A25 Swing Gate Motors.

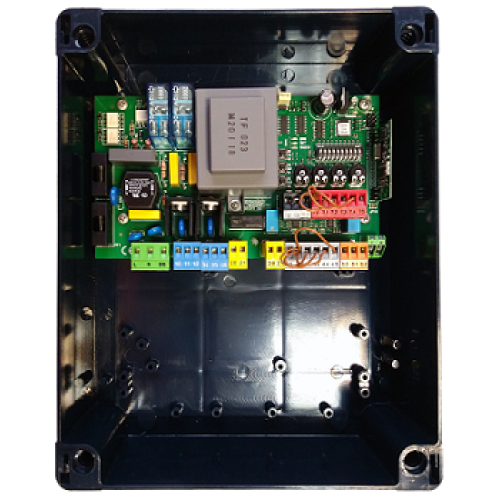

1 x ALENA SW2 Control Board.

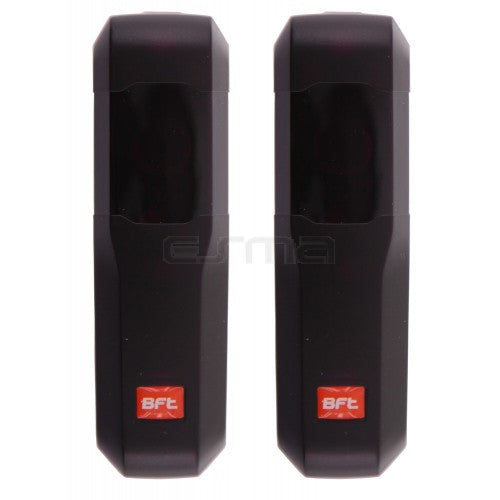

1 x DESME A15 Pair of self-aligning photocells. Range 30 m.

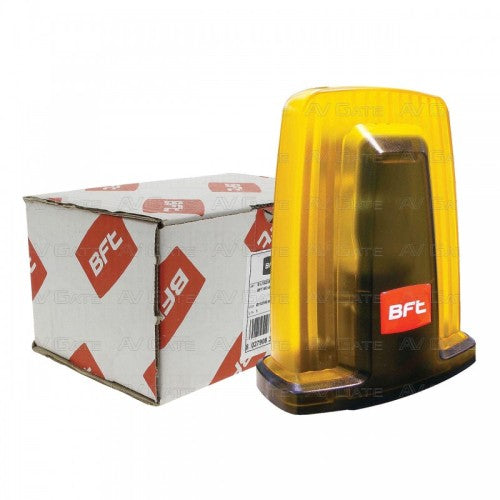

1 x RADIUS B LTA 230 R1 Flashing light with incorporated antenna.

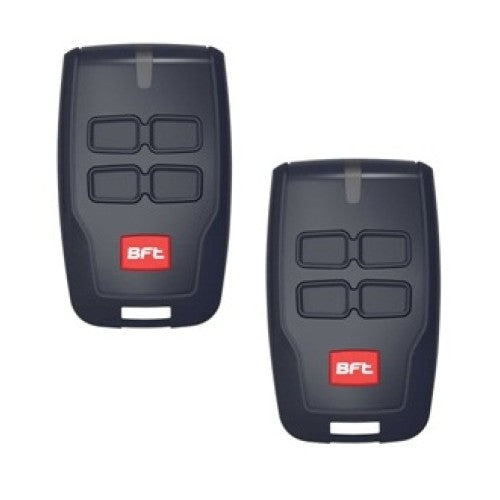

2 x MITTO B RCB04 R1Transmitter with 4 channels. Range 50/100 m.
1 x Push button.
Technical data sheets:
Control unit: ALENA SW2
Board power supply: 230 V
Motor voltage: 230 V
Power consumption: 280 W
Max. width of door/gate wing: 2.5 m
Max. weight of door/gate wing: 700 kg
Useful rod stroke: 300 mm
Maximum angle: 110 °
Cycle time: 14 s
Type of limit switch: work time
Slowdown: Yes
Locking: Mechanical
Release: Triangle key
Impact reaction: Electronic clutch
Frequency of use: Semi intensive
Protection rating: IP54
Environmental conditions: -20 ÷ 55 °C
Interconnectivity: no

Security Level :

IMPA Code :

HSN Code :

Packing Details :

Hand Side :

Recommended use :

Suitable for :

• Aluminum
• Bronze
