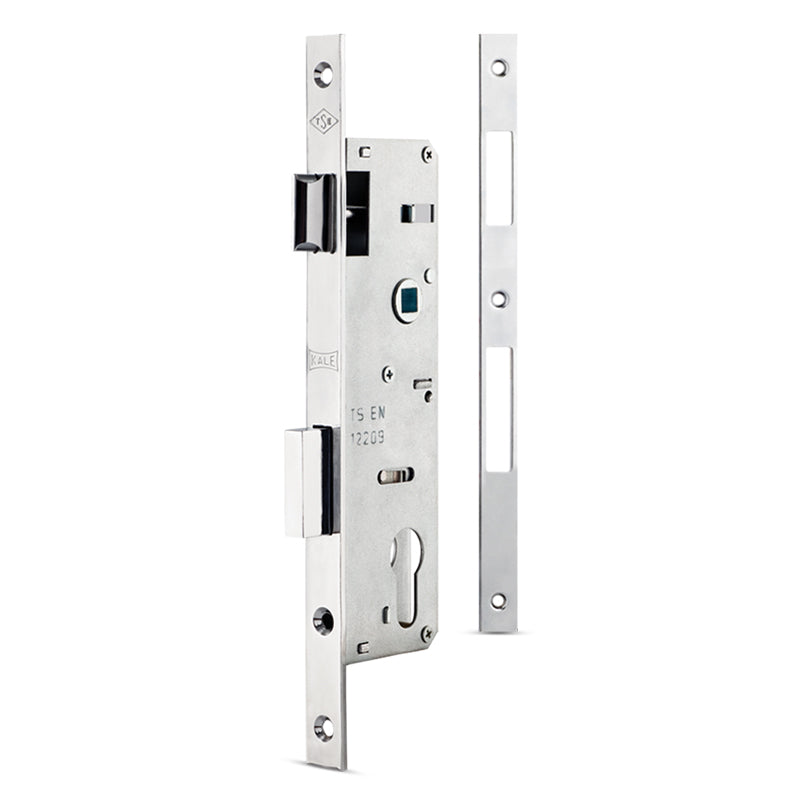

Kale 153P narrow mortise lock for PVC doors with strike plate

Kale 153P narrow mortise lock for PVC doors

Descripción del producto

Kale 153P is Kale Kilit's narrow-type cylinder mortise lock for PVC (uPVC) doors. Its 16 mm forend fits PVC door profiles, and one lock gives you a latch for the handle and a one-throw deadbolt worked by a euro profile cylinder. Made by Kale Kilit, Turkey, to TS EN 12209.

Choose your backset

Kale code	Backset	Unit weight
153 P 20	20 mm	570 g
153 P 25	25 mm	660 g
153 P 30	30 mm	690 g
153 P 35	35 mm	720 g

Technical details

Type	Mortise lock for cylinder, narrow type, open case
For	PVC (uPVC) doors
Centre distance (handle to cylinder)	85 mm
Backset	20, 25, 30 or 35 mm
Forend	240 x 16 mm, 2.5 mm thick, fixing holes 214 mm apart
Case	172.5 mm high, 14 mm thick
Spindle	8 mm square
Latch	10 mm throw, chrome-plated zinc alloy
Deadbolt	One throw, 15 mm, chrome-plated zinc alloy
Case material	Galvanized steel
Forend and strike plate	Chrome-plated steel; strike plate 240 x 16 mm, 1.5 mm thick
Hand	Reversible (left or right)
Cylinder	Kale 164 GNC, 68 mm (as listed on Kale's technical sheet)
Standard	TS EN 12209
Packing	30 pcs per carton, 41.2 x 25.5 x 17.5 cm

Kale's technical sheet lists the 153P with its 164 GNC 68 mm cylinder. Some sellers supply the lock body only, so please tell us the backset and whether you need the cylinder with it. Prices exclude 5% VAT.

Especificaciones

Brand and model: Kale Kilit 153 P (narrow type, for PVC doors)
Backset: 20, 25, 30 or 35 mm (codes 153 P 20 / 25 / 30 / 35)
Centre distance handle to cylinder: 85 mm
Forend: 240 x 16 mm, 2.5 mm thick; strike plate 240 x 16 mm, 1.5 mm thick
Case: 172.5 mm high, 14 mm thick, galvanized steel, open case
Spindle: 8 mm square
Latch 10 mm throw and one-throw 15 mm deadbolt, chrome-plated zinc alloy
Forend and strike plate: chrome-plated steel
Hand: reversible
Cylinder: Kale 164 GNC 68 mm (per Kale's technical sheet)
Unit weight: 570 g (20 mm), 660 g (25 mm), 690 g (30 mm), 720 g (35 mm)
Standard: TS EN 12209

Beneficios

Narrow 16 mm forend made for PVC door profiles
Latch and one-throw deadbolt in one lock
Reversible: fits left- and right-hand doors
Chrome-plated steel forend and strike plate, galvanized steel case
Four backsets (20 to 35 mm) to match your door profile
Made by Kale Kilit to TS EN 12209
