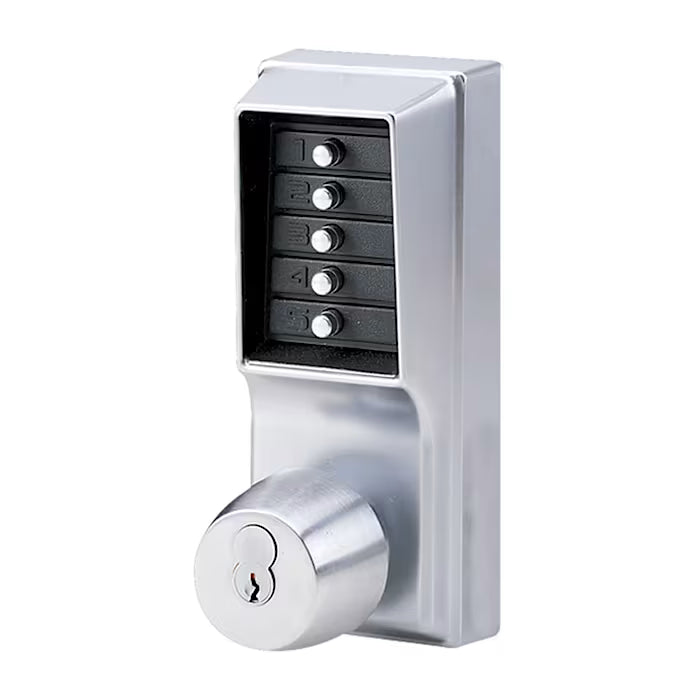

Simplex 1000 1011‑26D‑41 (ANSI)
Simplex 1000 1011‑26D‑41 (ANSI)
Hurry up, only 2 items left in stock.
Country of Origin : United States
- HS Code :
- IMPA Code :
- Package Dimention CM :
Couldn't load pickup availability
Get Aed 20 off when you spend Aed 1,000 or more! Learn more
Specifications
Specifications
High Quality
Product Details
Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
Number of Codes: Single access code—one easy-to-manage code for all users
Programming: Lock is easily programmed via keypad without removing lock from the door
Handing: Factory-handed for left-hand doors; easily field reversible
Operation Modes:
- Pushbutton Access
- Passage (select models)—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
- Lockout (select models)—disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only.
Economical: A cost effective access control solution
Technical Details
Construction: Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Handing: Factory-handed for left-hand doors; easily field reversible
Backset: 2¾" (70 mm), 2⅜" (60 mm)
Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
Minimum Stile Recommended: 5" (127 mm)
Strike: Standard strike plate; ASA strike plate
Key Override
- Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
- Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through bore holes required.
Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm)
Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
Warranty: 3-year warranty
Standard Finishes:
- Satin Chrome 26D (626)
- Antique Brass 05 (609)
Optional Finishes:
- Bright Brass 03 (605)
- Bright Chrome 026 (625)
